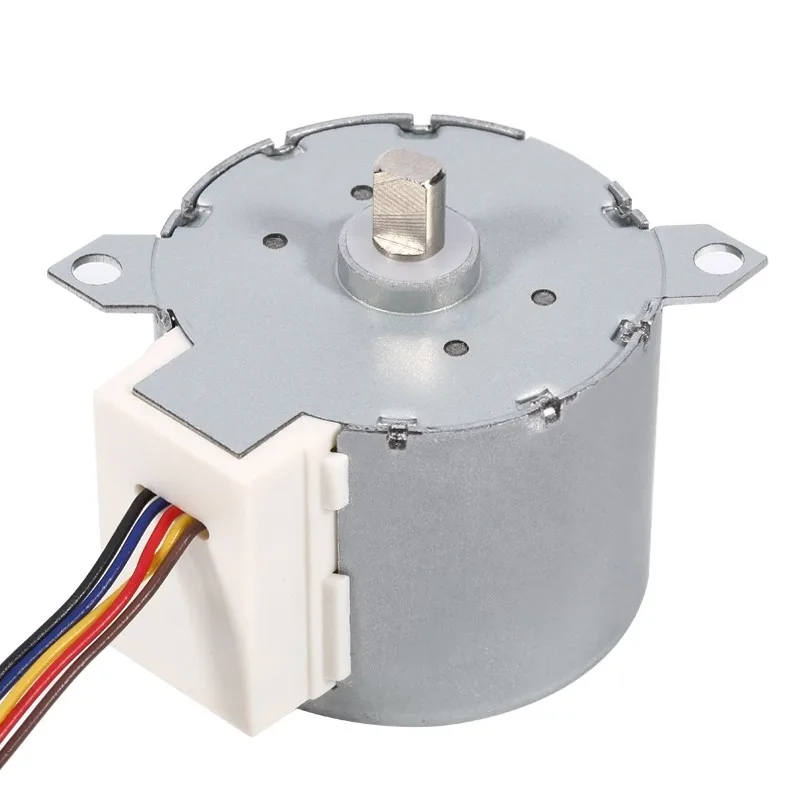

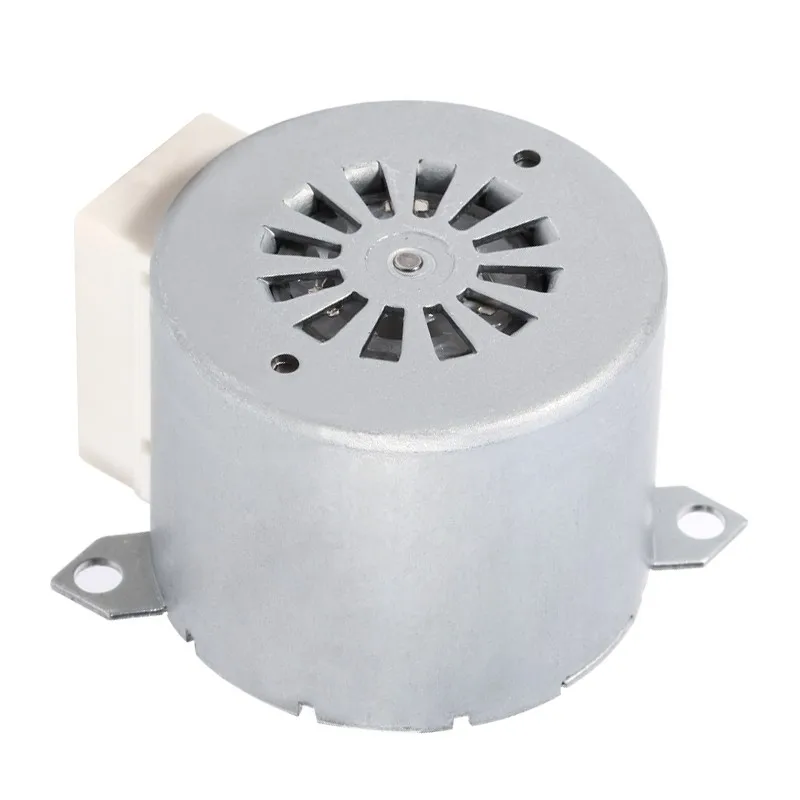

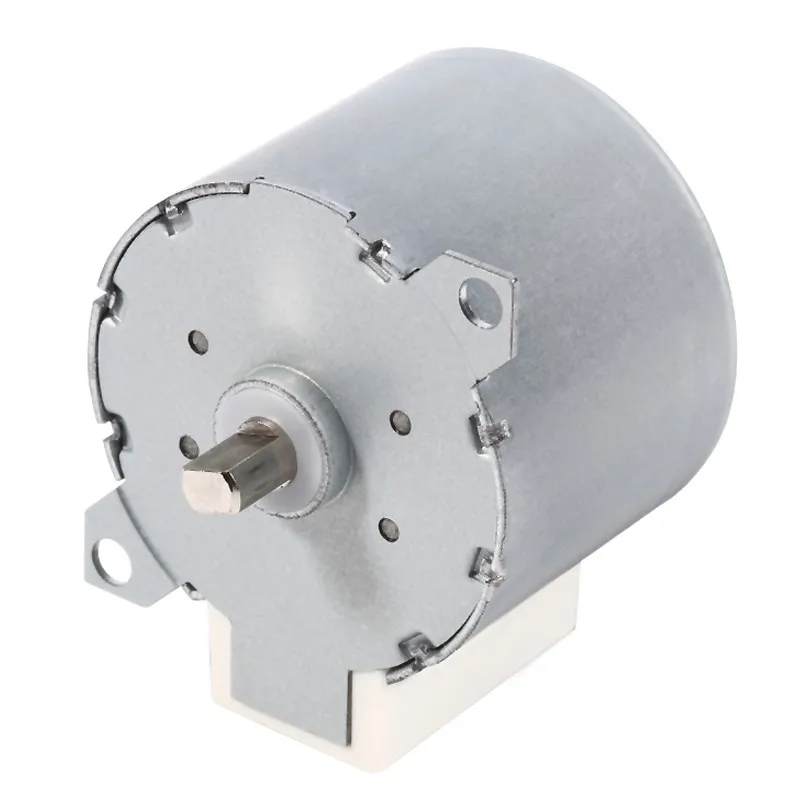

Customized dc reducer stepper motor 12v 35BYJ412 motor with gear and pcb

FOB Reference Price:Get Latest Price
$0.90 - $1.20 / Units | 1000 Unit/Units (Min. Order)
Lead Time:
Quantity(Units) 1 - 5000 >5000
Est. Time(days) 15 Negotiable
Customization:
Customized packaging (Min. Order: 5000 Units)
Graphic customization (Min. Order: 5000 Units)

More

Customized logo (Min. Order: 5000 Units) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
MAINTEX
Model Number:
35BYJ412-014
Step Angle(degrees):
7.5 Degree
Holding Torque:
90
Phase:
4
Type:
DC Gear Reducer Stepper Motors
Certification:
CCC, CE, ISO, ROHS, UL
rated voltage:
12vdc
reduction ratio:
1/85
Exciting mothod:
4phase, 8beat
Direct-current resistance:
130Ω±10%(25℃)
Pull-in Torque:
≥800gf.cm
Detent Torque:
≥90mN.m
Insulation Resistance:
≥50MΩ500VDC
Temp Rise:
≤60K
Noise:
≤40dB
Insulation class:
B
Supply Ability
Supply Ability:
100000 Unit/Units per Week
Packaging & Delivery
Packaging Details
Standard export package
Port
Shenzhen/Hongkong
Lead Time :
Quantity(Units) 1 - 5000 >5000
Est. Time(days) 15 To be negotiated

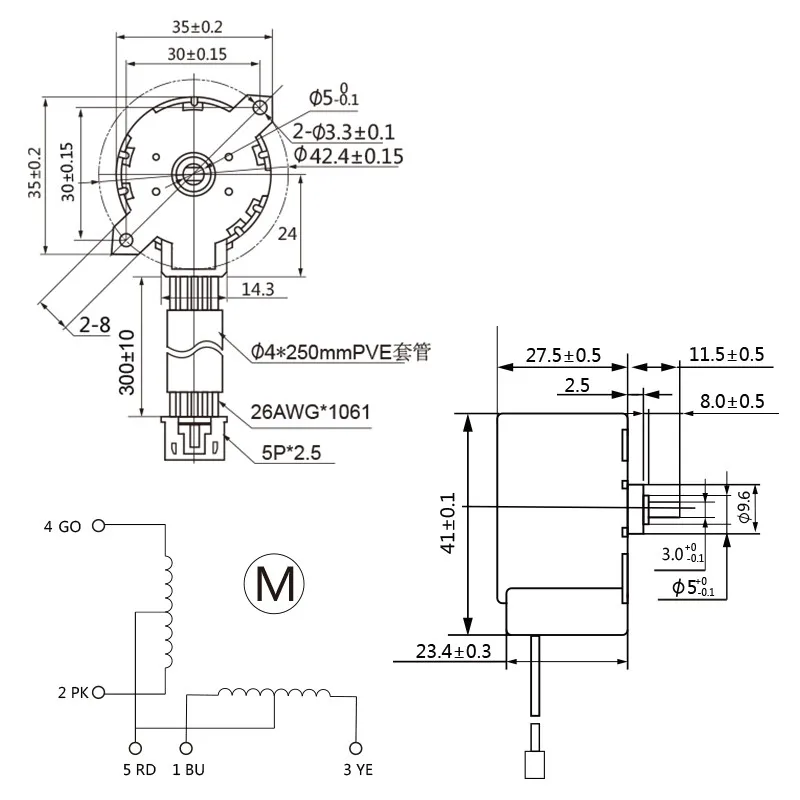

Product Description
Type
PM Stepper Motor
Model
35BYJ412-014
No-load Pull-in Frequency
≥750Hz
No-load Pull-out Frequency
≥850Hz
Pull-in Torque
≥800gf.cm(12VDC,100Hz)
Detent Torque
≥90mN.m
Insulation Resistance
≥50MΩ 500VDC
Noise
≤40dB
Friction Torque
2.5-3.0Kgf.cm
Typical Applications
Stylus Printer, POS Terminal, Electronic Scale, Toy, Industrial Auto Control.

Customized service available for all models

Typical Applications

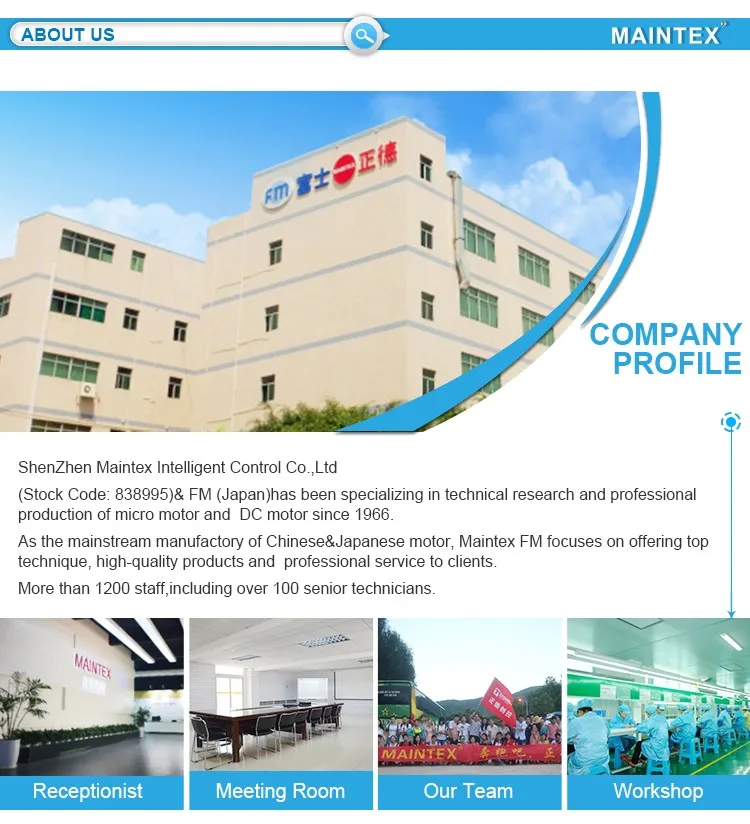

Company information

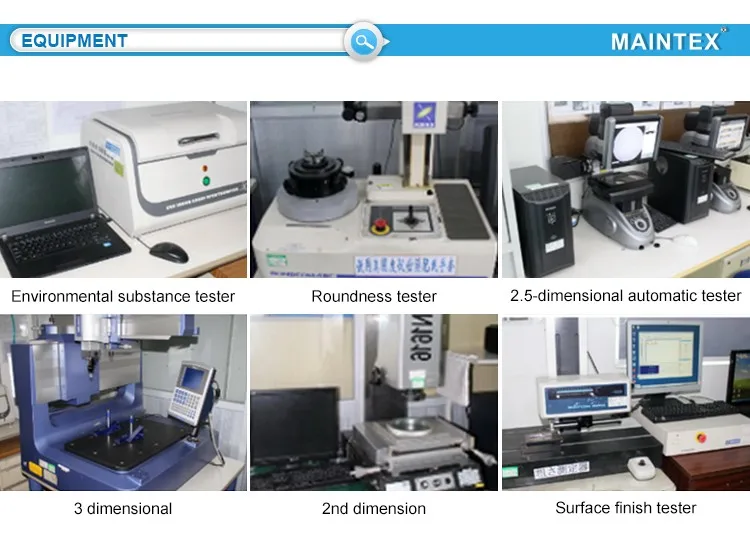

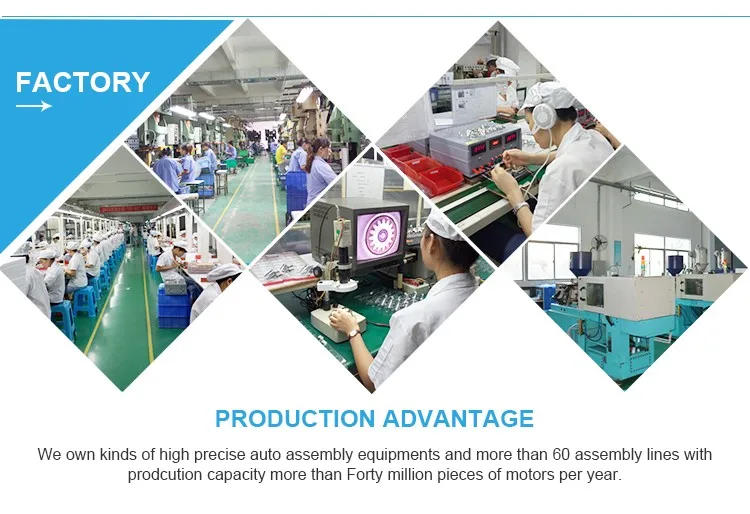

Factory
